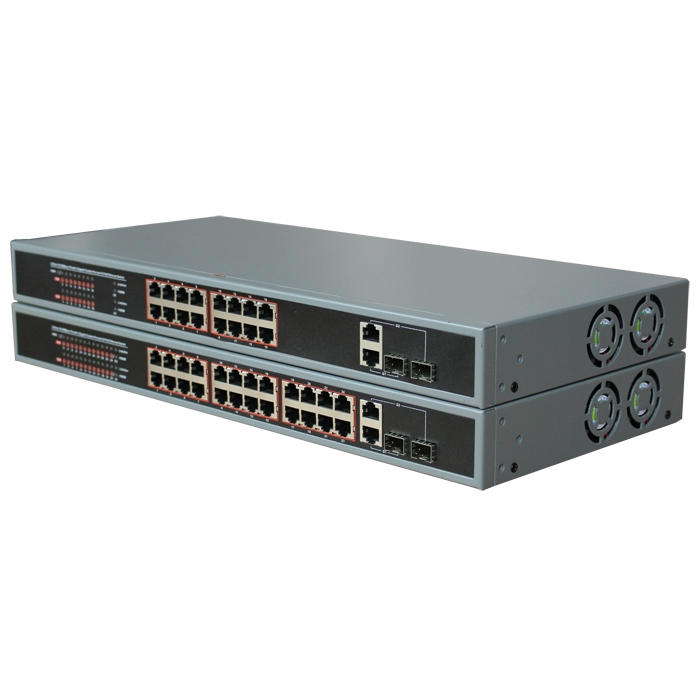

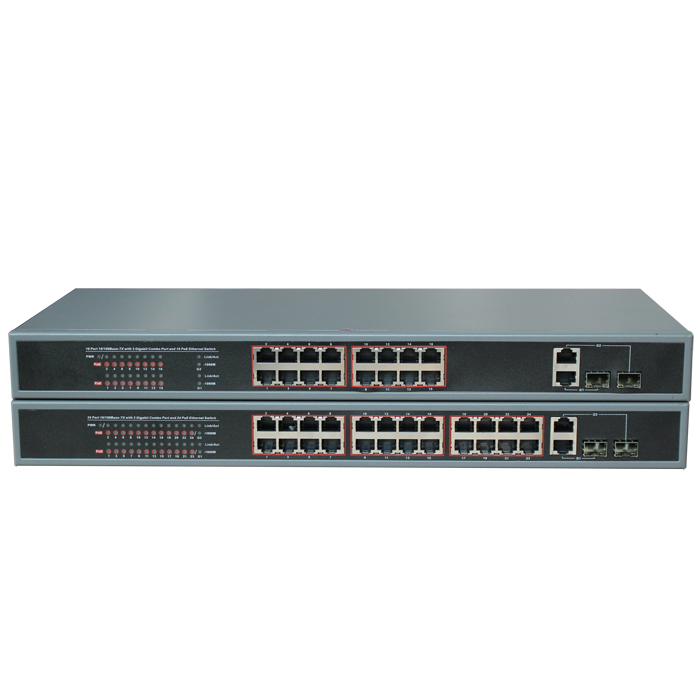

S6018-16P 16 PoE ports 10/100Base-TX +2Gigabit Combo port PoE Switch
- Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at
- Provides 16 10/100Base-TX ports,2 Gigabit Combo
- Provides 16 PoE injector and 250W power adapter
- High back-plane bandwidth 5.6Gbps
- IEEE802.3x Flow control
- Surge protection for power port and data ports
Description
The S6018-16P, an unmanaged Fast-Ethernet switch, is designed for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections.
The S6018-16P provides 16 10/100Base-TX ports and 2 Gigabit Combo, It provides 16 PoE Injector.
Specifications
| Item | Description |
| Summarize | |
| Fixed port | 16 10/100Base-TX ports 2 Combo Gigabit |
| LED Indicators | PWR, PoE, Link/Act LED. |
| Input voltage | 100V～240V AC，50/60Hz |
| Power consumption | 250W (250W for PoE) |
| Operating temperature | 0℃～40℃. |
| Storage temperature | -10℃～70℃. |
| Relative humidity | 20%～89% (non-condensing). |
| Thermal methods | Fanless. |
| Switching capacity | 7.2G. |
| MAC address table | 4K. |
| Traffic control | IEEE 802.3x full-duplex flow control. |
| Size | 440*44*200mm(1U) |
| PoE | |
| PoE port | 16 10/100Base-TX ports. |
| PoE Standard | IEE802.3af, IEEE802.3at, per port 30W(MAX)Total 250W |
| Pin assignment | V+ (RJ45 Pin 4, 5), V- (RJ45 Pin 7, 8). |
Order Information
| S6018-16P-125 | 16+2G(Gigabit Combo) ports Unmanaged Switch with 16 PoE injector (125W) |
