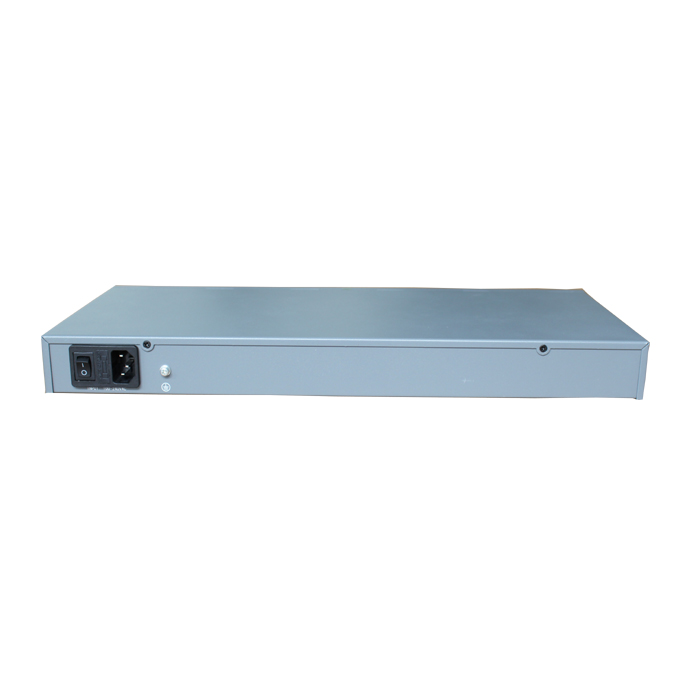

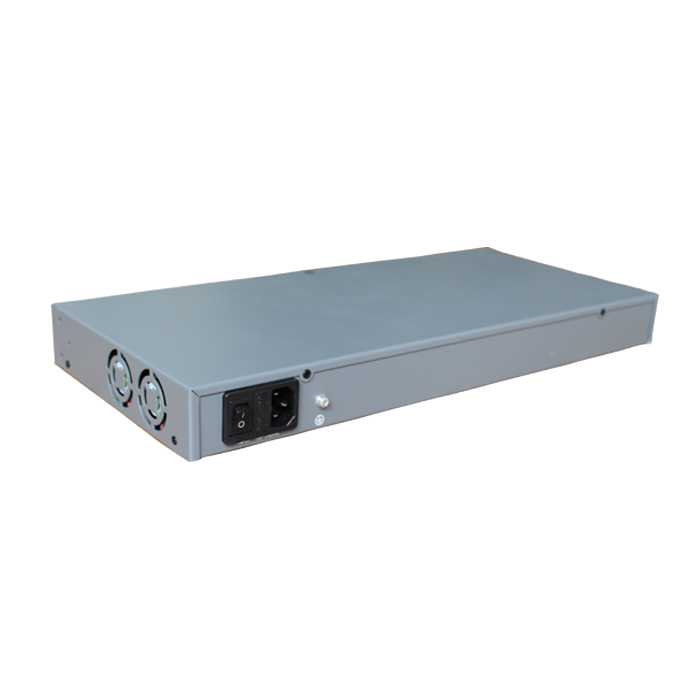

S7026-24P 24 PoE ports 1000Mbps+2Gigabit SFP PoE Switch
- Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at
- Provides 24 10/100Base-TX ports,2 Gigabit Combo
- Provides 24 PoE injector and 370W power adapter
- High back-plane bandwidth 52Gbps
- IEEE802.3x Flow control
- Surge protection for power port and data ports
Description
The S7026-24P, an unmanaged Gigabit-Ethernet switch, is designed for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections.
The S7026-24P provides 24 10/100/1000Base-TX ports and 2 Gigabit SFP, It provides 24 PoE Injector.
Specifications
| Item | Description |
| Summarize | |
| Fixed port | 24 10/100/1000Base-TX ports 2 Gigabit SFP |
| LED Indicators | PWR, PoE, Link/Act LED. |
| Input voltage | 100V～240V AC，50/60Hz |
| Power consumption | 370W (370W for PoE) |
| Operating temperature | 0℃～40℃. |
| Storage temperature | -10℃～70℃. |
| Relative humidity | 20%～89% (non-condensing). |
| Thermal methods | Fanless. |
| Switching capacity | 52G. |
| MAC address table | 5K. |
| Traffic control | IEEE 802.3x full-duplex flow control. |
| Size | 440*44*200mm(1U) |
| PoE | |
| PoE port | 24 10/100Base-TX ports. |
| PoE Standard | IEE802.3af, IEEE802.3at, per port 30W(MAX)Total 370W |
| Pin assignment | V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6). |
Order Information
| S7026-24P-255 | 24G+2G(Gigabit SFP) ports Unmanaged Switch with 24 PoE injector (255W) |
