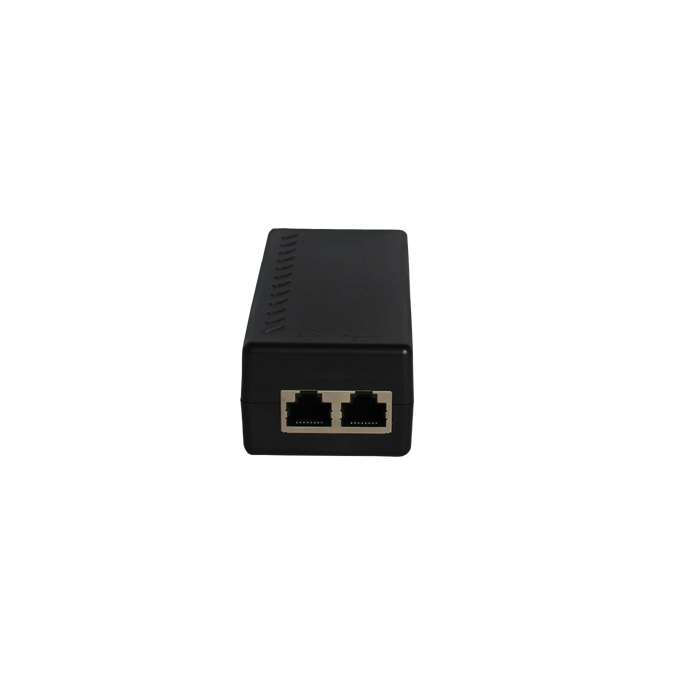

PSE-101TN /PSE-101FN Power-over-Ethernet Injector Up to 30W/15W of Power on 2-pairs
- Full IEEE 802.3atCompliant
- Up to 30W/15.4W of Power on 2-pairs
- Auto-detect of POE IEEE 802.3af/atequipment
- Supports 10/100/1000Base-T applications
- LED indicators power input indication
- Distance up to 100 meters
- Internal AC/DC converter –no need for external power brick
- Easy plug-and-play installation
Description
The PSE101TN/PSE101FN is a single port Mid-span offer a compact and cost effective, fully IEEE 802.3at compliant solution for remote powering of wireless LAN (WAN) access points, IP Security cameras, VoIP telephone and other low port density installations.
The PSE101TN /PSE101FN PoE Mid-span eliminate the need for external power supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.
Specifications
| Item | Description |
| No. of channels | 1 |
| Pass Through Data Rates | 10/100/1000Mbps |
| Power over Ethernet Output | Pin Assignment and Polarity:
1/2 (-), 3/6 (+) Output Power Voltage: 54Vdc User Port Power: 30W/15.4W max |
| Input Power Requirements | AC Input Voltage: 100 to 240 Vac
AC Input Current: 0.5A 100-240 Vac AC Frequency: 50 to 60 Hz |
| Dimensions | 121mm x 50mm x 36mm |
| Indicators | System Indicator: AC Power
User Indicator: Channel Power |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Protection | Over current protection |
| Overload protection | |
| Environmental Conditions | Operating Ambient Temperature:0 to 40℃
Operating Humidity: Maximum 90%, Non-condensing Storage Temperature:-40 to 70℃ Storage Humidity: Maximum 90%, Non-condensing |
| Regulatory Compliance | IEEE 802.3af (PoE)
IEEE 802.3at (PoE+) |
