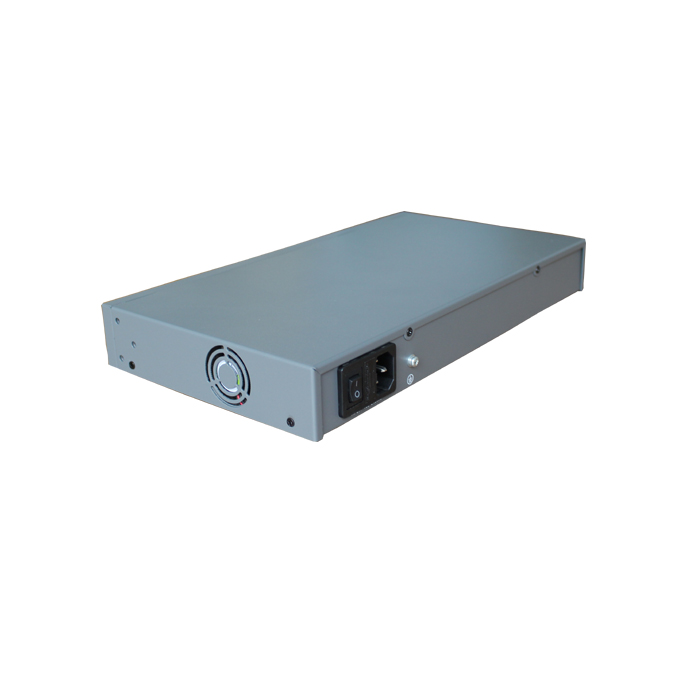

MPSE108 8ports managed PoE injector
- Full IEEE 802.3af Compliant
- Up to 15.4W of Power on 2-pairs
- Auto-detect of POE IEEE 802.3afequipment
- Supports 10/100/1000Base-T applications
- LED indicators power input indication
- Internal AC/DC converter –no need for external power brick
- Easy plug-and-play installation
- Surge protection
- EMI standards complies with FCC, CE class B
Categories: Managed POE Injector, POE Injector.
Description
The PSE108 is a eight port Mid-spans offer a compact and cost effective, fully IEEE 802.3af compliant solution for remote powering of wireless LAN (WAN) access
points, IP Security cameras, VoIP telephone and other low port density installations.
The PSE108 PoE Mid-spans eliminate the need for external power supply and its associated AC/DC power cabling, providing a compact, affordable,
safe and reliable power solution over existing Ethernet infrastructure.
Specifications
Item | Description |
No. of channels | 8 |
Pass Through Data Rates | 10/100/1000Mbps |
Power over Ethernet Output | Pin Assignment and Polarity:1/2 (-), 3/6 (+)Output Power Voltage: 50VdcUser Port Power: 20W |
Input Power Requirements | AC Input Voltage: 100 to 240 VacAC Input Current:2A 100-240 VacAC Frequency: 50 to 60 Hz |
Dimensions | 44*185*341mm |
Indicators | System Indicator: PowerUser Indicator: Channel Power |
Connectors | Shielded RJ-45, EIA 568A and 568B |
Environmental Conditions | Operating Ambient Temperature:-10 to 45℃Operating Humidity:Maximum 80%, Non-condensing
Storage Temperature:-20 to 70℃ Storage Humidity: Maximum 80%, Non-condensing |
Regulatory Compliance | IEEE 802.3af/at (PoE) |

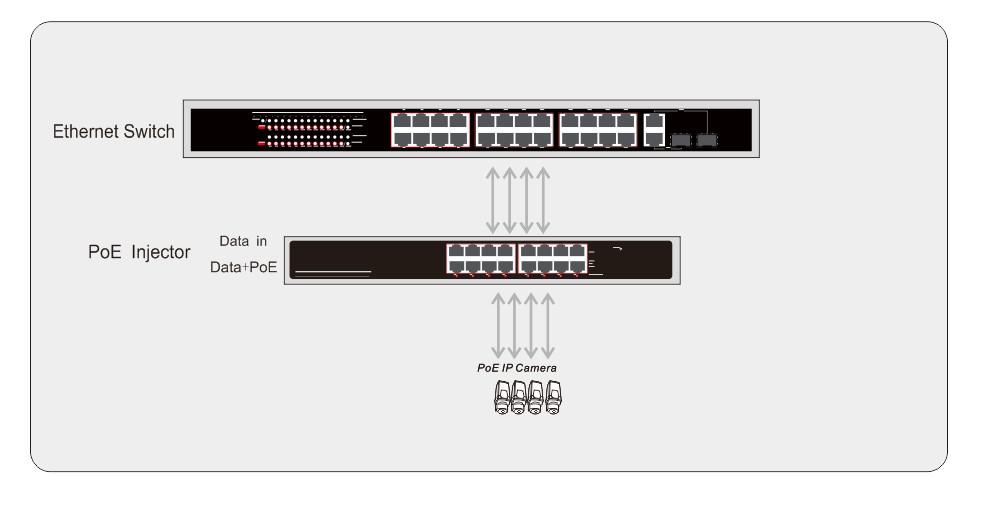

Application
Order Information
PSE108-130 | 8 channel 10/100/1000M PoE InjectorIEEE802.3af (15.4W) full load |
PSE108-250 | 8 channel 10/100/1000M PoE InjectorIEEE802.3at (25W) full load |
