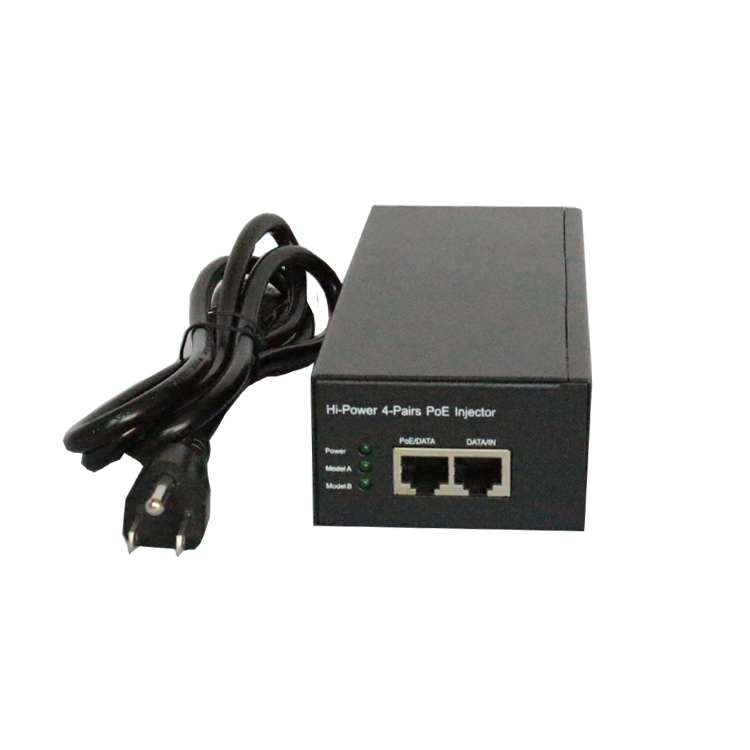

PSE101H 1 channel 60W PoE injector

  • Up to 60W of Power on 4-pairs
  • Supports 10/100/1000 Base-T applications
  • LED indicators  forpower input and PoE output
  • Internal AC/DC converter no need for external power brick
  • Easy plug-and-play installation
  • Muti-protection



Item:

No. of channels:1

Pass Through Data Rates:10/100/1000Mbps

Power over Ethernet Output:

Pin Assignment and Polarity:1/2 (-), 3/6 (+) 4/5(+)7/8(-)

Output Power Voltage:50VDC

User Port Power:30W&60W

Input Power Requirements

AC Input Voltage:100 to 240 VAC

AC Input Current:0.5A 100-240 VAC

AC Frequency:50 to 60 Hz



Dimensions:168mm x73 .5 mm x 44  mm

Indicators:

System Indicator: AC Power

User Indicator: Channel Power



Connectors:Shielded RJ-45, EIA 568A and 568B

Protection

Over current protection

Over load protection

Over voltage protection

Environmental Conditions

Operating Ambient Temperature  :0 to 40 ℃

Operating Humidity:Maximum 85%, Non-condensing

torage Temperature : -10 to 50 ℃

Storage Humidity :Maximum 90%, Non-condensing
