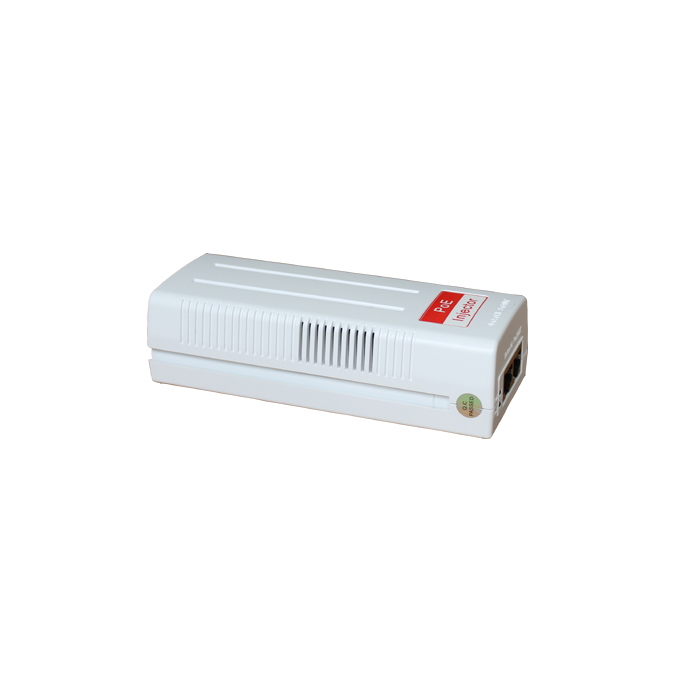

PSE101 1channel 15.4W/30W PoE injector
- POE function enable/disable
- Per port POE function enable /disable
- PD alive check fnction
- Per port POE power schedule
- Schedule power recycle
- Monitor POE output power of each port
- Supports network time protocol (NTP)
- Web interface for remote management
- Reset button for reset to default setting and system reboot
- Support for 200 meter from switch to PD with 100Mbps long transmition
- Working temperature:-40-50℃
The PSE101 is a single port Mid-spans offer a compact and cost effective, fully IEEE 802.3at compliant solution for remote powering of wireless LAN (WAN) access points, IP Security cameras, VoIP telephone and other low port density installations.
The PE911 PoE Mid-spans eliminate the need for external power supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.
Features
- Full IEEE 802.3af, IEEE 802.3at Compliant
- Up to 30W of Power on 2-pairs
- Auto-detect of POE IEEE 802.3af equipment
- Supports 10/100/1000 Base-T applications
- LED indicators power input indication
- Distance up to 100 meters
- Internal AC/DC converter – no need for external power brick
- Easy plug-and-play installation
- Surge protection
- EMI standards complies with FCC, CE class B
Specifications
| Item | Description |
| No. of Ports | 1 |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Power over Ethernet Output | Pin Assignment and Polarity:3/6 (+), 1/2 (-)Output Power Voltage: 55VdcUserPortPower: 30W |
| Input Power Requirements | AC Input Voltage: 100 to 240 VacAC Input Current: 0.3A 100-240 VacAC Frequency: 50 to 60 Hz |
| Dimensions | 150mmx65mmx38mm |
| Indicators | System Indicator: AC PowerUser Indicator: Channel Power |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Environmental Conditions | Operating Ambient Temperature:-10 to 45℃Operating Humidity:Maximum 90%, Non-condensingStorage Temperature:-20 to 70℃Storage Humidity:
Maximum 95%, Non-condensing |
| Reliability | MTBF: 100,000 hrs. @25℃ |
| Regulatory Compliance | IEEE 802.3af (PoE), IEEE 802.3at (PoE+)RoHS Compliant, CE, FCC |
| ElectromagneticEmission & Immunity | FCC Part15, Class BEN 55022 Class B (Emissions)EN 55024 (Immunity), VCCI |
| Surge Protection | AC port: 6kVRJ45 port: 4kV |
