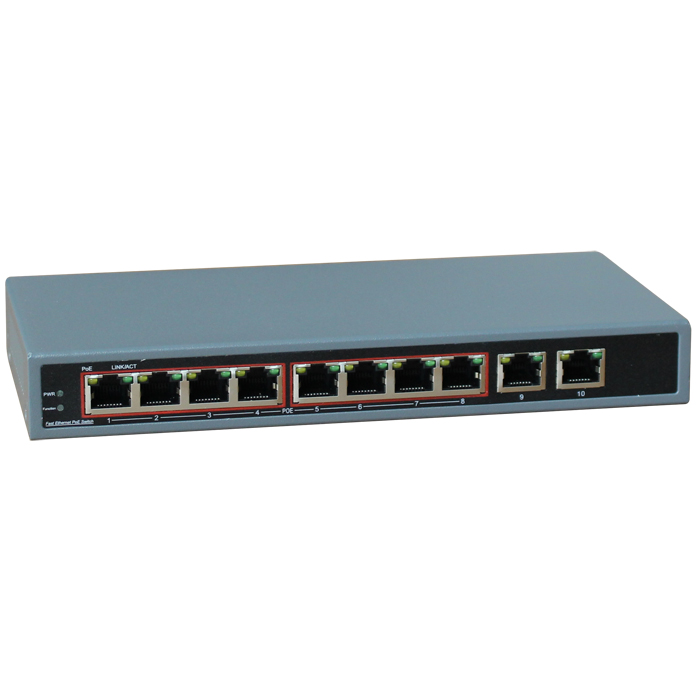

S6010-8P 8 PoE ports 10/100Base-TX+2ports Gigabit ports PoE swtich
- Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at
- Provides 8 10/100Base-TX ports,1 Gigabit Combo, 1 Gigabit SFP
- Provides 8 PoE injector and 65W/130W power adapter
- High back-plane bandwidth 5.6Gbps
- IEEE802.3x Flow control
- Surge protection for power port and data ports
- EMI standards complies with FCC, CE class B
Description
The S6010-8P, an unmanaged Fast-Ethernet switch, is designed for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections.
The S6010-8P provides 8 10/100Base-TX ports and 2 Gigabit RJ-45, It provides 8 PoE Injector.
Specifications
| Item | Description |
| Summarize | |
| Fixed port | 8 10/100Base-TX ports 2 Gigabit RJ-45 |
| LED Indicators | PWR, PoE, Link/Act LED. |
| Input voltage | 100V～240V AC，90/60Hz (for power adapter)48VDC (for PoE switch) |
| Power consumption | 130W (125W for PoE) |
| Operating temperature | 0℃～40℃. |
| Storage temperature | -10℃～70℃. |
| Relative humidity | 20%～90% (non-condensing). |
| Thermal methods | Fanless. |
| Switching capacity | 8.6G. |
| MAC address table | 4K. |
| Traffic control | IEEE 802.3x full-duplex flow control. |
| Size | |
| PoE | |
| PoE port | 8 10/100Base-TX ports. |
| PoE Standard | IEE802.3af, IEEE802.3at, per port 30W(MAX)Total 130W |
| Pin assignment | V+ (RJ45 Pin 4, 5), V- (RJ45 Pin 7, 8). |
Order Information
| S6010-8P-125 | 8+2G(2 gigabit RJ-45) ports Unmanaged Switch with 8 PoE injector (125W) |
