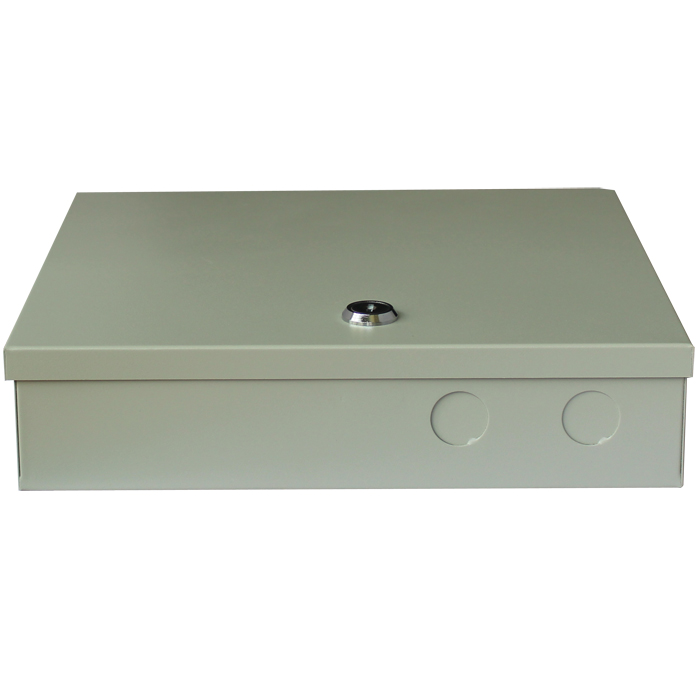

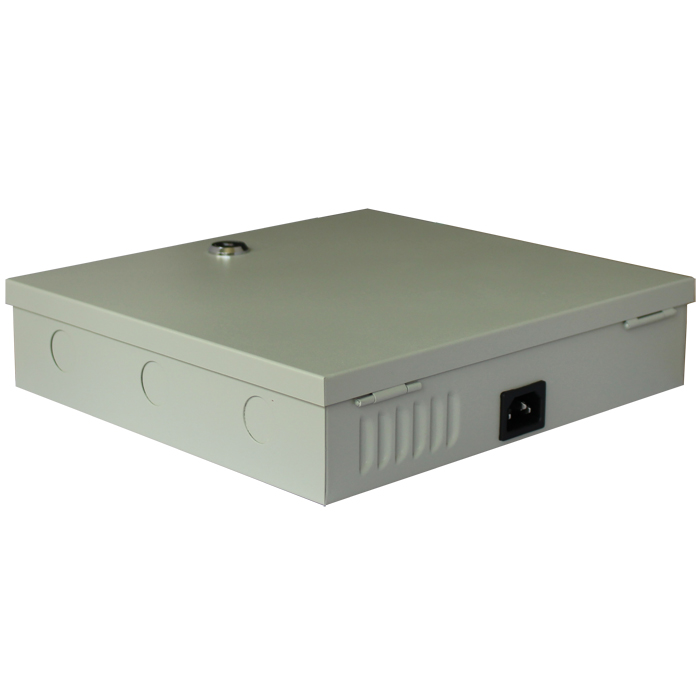

CSE1220-D18E output 12V20A cctv power supply
- Competitive price with compact size
- Class 2 PTC output protection for each port
- Individual status LED indicator for each output
- Applcation :CCTV camera,PTZ,IR llluminators,Video process,Access control,etc
Thermal Cutoffs Protection (TCO): each output has independent PTC fuse and LED indicator, when
problem occurs, only affect the independent output, other outputs still working.
Short circuit protection: when short condition occurs, independent PTC fuse will open the circuit, when
condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect
the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
| Model No. | CSE1220-D9E | CSE1220-D18E |
| Input | 100-240V AC 50/60Hz 4A | 100-240V AC 50/60Hz 4A |
| Output | DC12V20A | DC12V20A |
| Current per(Option) | 9*2.2A | 18*1.11A |
| Protect Type | PTC | PTC |
| Safety standard | CE | CE |
| Case Type | Metal | Metal |
| Color Type | White/Black | White/Black |
| Accessory(largess) | AC Cable | AC Cable |
| Warranty | 2 years | 2 years |
