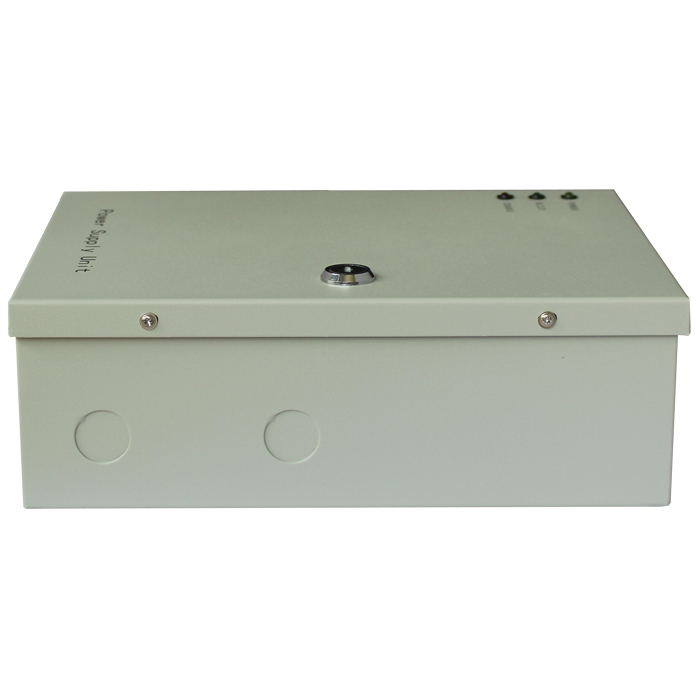

CSE1210-D18B output 12V10A 18CH UPS power supply
- UL listed UL 2044
- Adjustable output vlotage from 12-13.8V DC
- Individual status LED indicator for each output
- Built-in charger for batteries
- Zero voltage drop upon transfer to battery backup
- Automatic switch over to stand-by battery when AC fails
- Includes battery leads
- Application:CCTV camera,PTZ ,IR llluminators, Video process, Access control, etc
Thermal Cutoffs Protection (TCO): each output has independent PTC fuse and LED indicator, when
problem occurs, only affect the independent output, other outputs still working.
Short circuit protection: when short condition occurs, independent PTC fuse will open the circuit, when
condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the
connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
Model No. | CSE1210-D9B | CSE1210-D18B |
Input | 100-240V AC 50/60Hz 2.5A | 100-240V AC 50/60Hz 2.5A |
Output | DC12V10A | DC12V10A |
Current per(Option) | 9*1.11A | 18*0.55A |
Protect Type | PTC | PTC |
Safety standard | UL cUL CE | UL cUL CE |
Case Type | Metal | Metal |
Color Type | White/Black | White/Black |
Accessory(largess) | AC Cable | AC Cable |
Warranty | 2 years | 2 years |
Protect Type | 1*7AH | 1*7AH |
