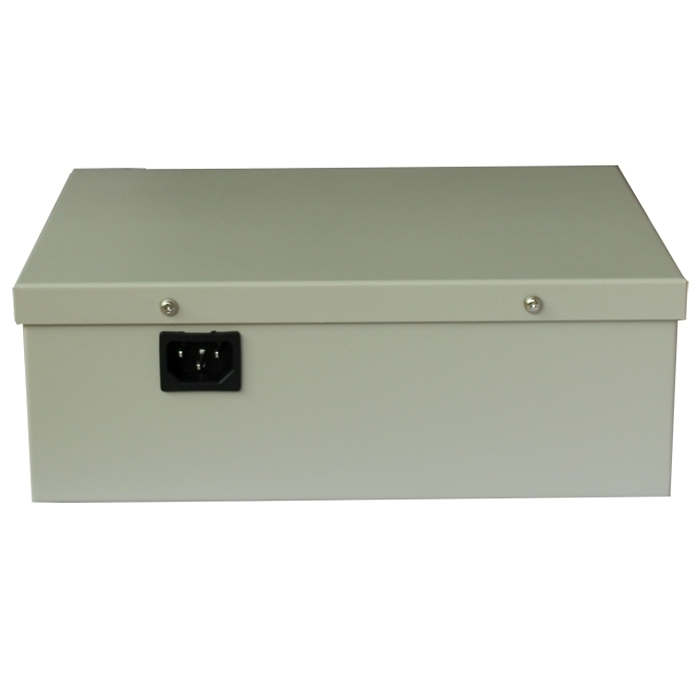

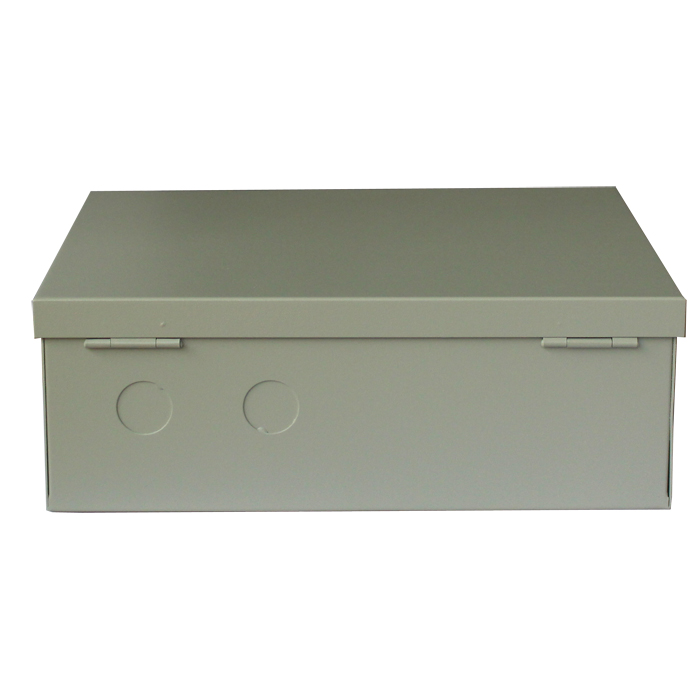

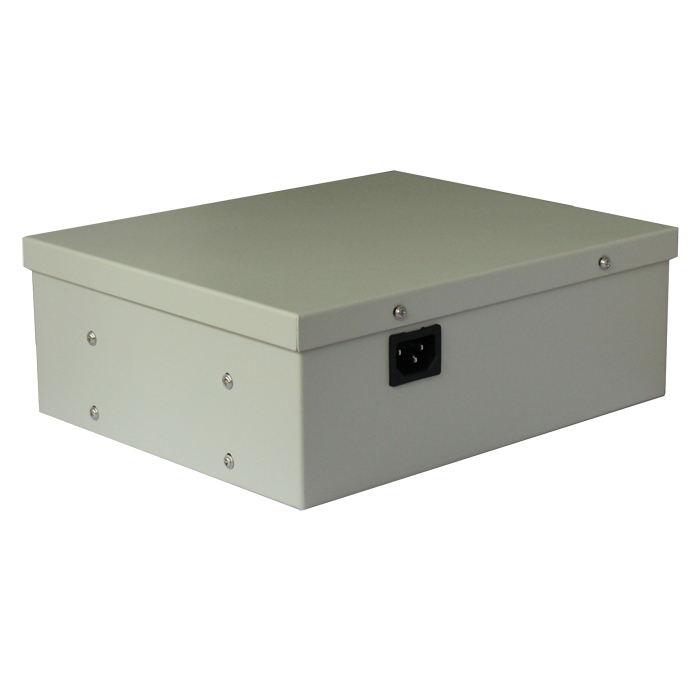

CSE1205-D9 output 12V5A 9CH CCTV power supply with UL
- UL listed UL 2044
- Class 2 PTC output protection for each port
- Individual status LED indicator for each output
- DC output are regulated and filtered
- Short circuit,thermal overload,over current protection
- Applcation :CCTV camera,PTZ,IR llluminators,Video process,Access control,etc
Thermal Cutoffs Protection (TCO): each output has independent PTC fuse and LED indicator, when
problem occurs, only affect the independent output, other outputs still working.
Short circuit protection: when short condition occurs, independent PTC fuse will open the circuit, when
condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect
the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
| Model No. | CSE1205-D4 | CSE1205-D9 |
| Input | 100-240V AC 50/60Hz 1.8A | 100-240V AC 50/60Hz 1.8A |
| Output | DC12V5A | DC12V5A |
| Current per(Option) | 4*1.25A | 9*0.55A |
| Protect Type | PTC | PTC |
| Safety standard | UL cUL CE | UL cUL CE |
| Case Type | Metal | Metal |
| Color Type | White/Black | White/Black |
| Accessory(largess) | AC Cable | AC Cable |
| Warranty | 2 years | 2 years |
