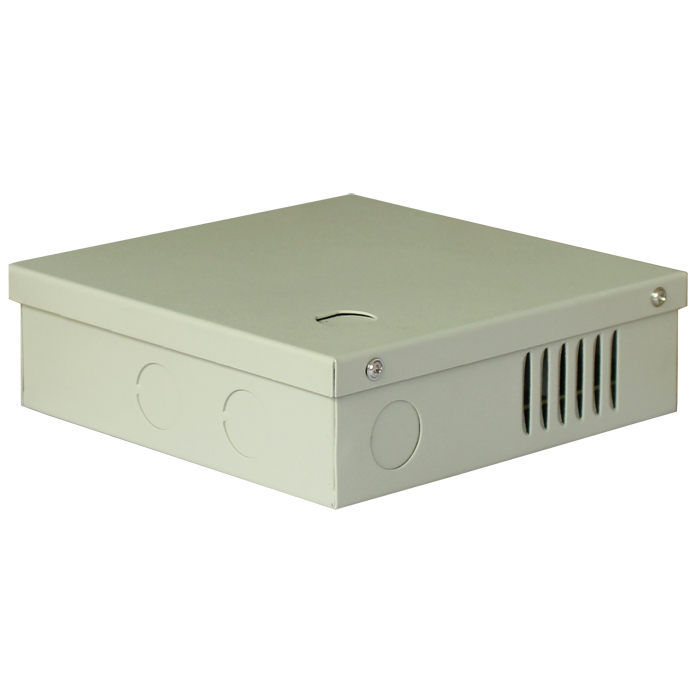

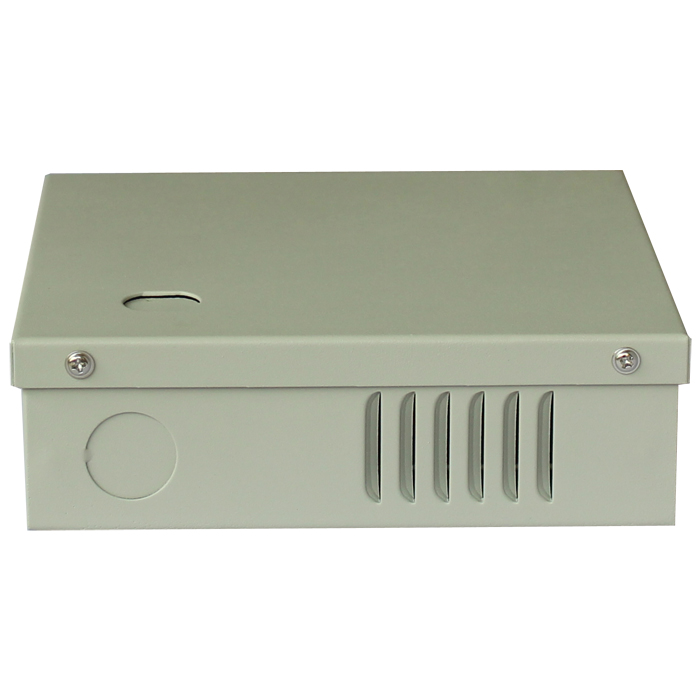

CSE1205-D4E output 12V5A 4ch power spply
- Competitive price with compact size
- Class 2 PTC uotput Protection for each port
- Individual status LED indicator for each output
- Adjustable output vlotage from 12-13.8V DC
- Application:CCTV camera,PTZ ,IR llluminators, Video process, Access control, etc
Thermal Cutoffs Protection (TCO): each output has independent PTC fuse and LED indicator, when
problem occurs, only affect the independent output, other outputs still working.
Short circuit protection: when short condition occurs, independent PTC fuse will open the circuit, when
condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect
the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
Model No. | CSE1203-D4E | CSE1205-D4E | CSE1205-D9E |
Input | 100-240V AC 50/60Hz 1.8A | 100-240V AC 50/60Hz 1.8A | 100-240V AC 50/60Hz 1.8A |
Output | DC12V3A | DC12V5A | DC 12V5A |
Current per(Option) | 4*0.75A | 4*1.25A | 9*0.55A |
Protect Type | PTC | PTC | PTC |
Safety standard | CE | CE | CE |
Case Type | Metal | Metal | Metal |
Color Type | White/Black | White/Black | White/Black |
Accessory(largess) | AC Cable | AC Cable | AC Cable |
Warranty | 2 years | 2 years | 2 years |
